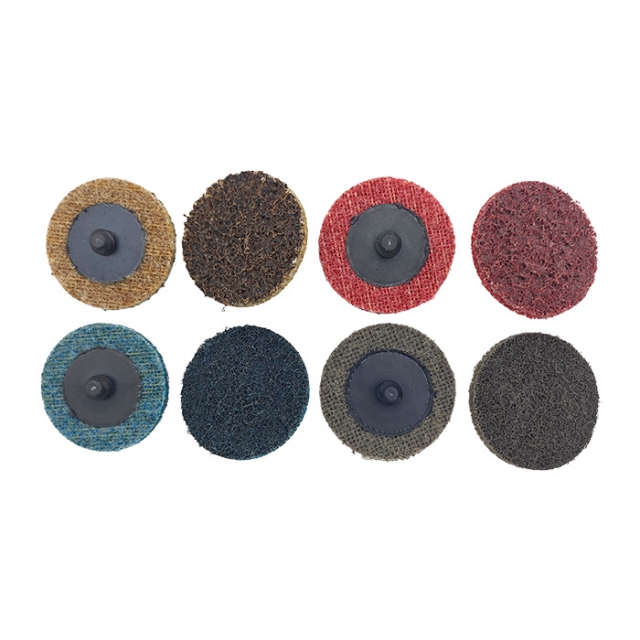

QC Surface Conditioning

Features

Non-woven construction:Made of high-strength nylon fiber impregnated with abrasive grain (usually aluminum oxide or silicon carbide)

Quick-change system:Compatible with Type R, S, or P mounts for fast disc swaps during multi-step operations

Cool & consistent cutting:Low heat generation, prevents discoloration and material distortion

Flexible & conformable:Easily adapts to contours, edges, and complex shapes

Available grades:Coarse, Medium, Fine, Very Fine – color-coded by grit (e.g., brown, maroon, blue, gray)Applications

Applications

Surface cleaning and oxidation removal

Weld discoloration cleanup

Blending of scratch patterns and minor defect removal

Paint and adhesive residue stripping

Light deburring and edge refinement

Pre-polishing preparation on stainless steel, aluminum, titanium, etc.

Specifications

Dimension Type Max R.P.M
Metric Imperial
38mm 1-1/2 Type-R/Type-S/Type-P 30000
50mm 2 Type-R/Type-S/Type-P 23000
75mm 3 Type-R/Type-S/Type-P 20000
  •
